Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant

  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
  • Empty Food Grade PP 29mm OD and 99mm Height Tube for Tablet Packaging with desiccant
محل منبع شانگهای ، چین
نام تجاری JND
گواهی FSSC 22000;ISO 9001;
شماره مدل VCB29T99
مقدار حداقل تعداد سفارش 50000 واحد
قیمت $0.07/unit without printing
جزئیات بسته بندی کیسه PE +کارتن کاغذ اندازه: 595*400*350 میلی متر برای لوله 550pcs ؛ 390*300*475mm برای درپوش 1500pcs
زمان تحویل 7-15 روز
قابلیت ارائه 27000 واحد در روز

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.

x
جزئیات محصول
برنامه قرص پر سر و صدا ویتامین ها ، مواد معدنی ، مکمل ها مواد بودای PP
ماده کلاه پستان نوع پلاستیکی PP
رنگ چاپی حداکثر 6 رنگ OEM قبول کردن
چاپ چاپ انتقال داغ یا برچسب زدن در قالب مادی درجه غذایی PP
موق 50000 واحد قالب ریزی قالب تزریقی
نام محصول لوله های قرص پرهری PP درجه یک با درب کلاه کلاه مارپیچ
رنگ سفارشی شکل سیلندر
پیام بگذارید
توضیحات محصول

※Product Specification


Such tube contains a set of individually wrapped effervescent tablets, making it easy to carry and use on-the-go.

The effervescent tablet packaging from JND can be printed by hot transfer processing to compete with the traditional label more uniquely, more attractively so as to enhance the brand value.

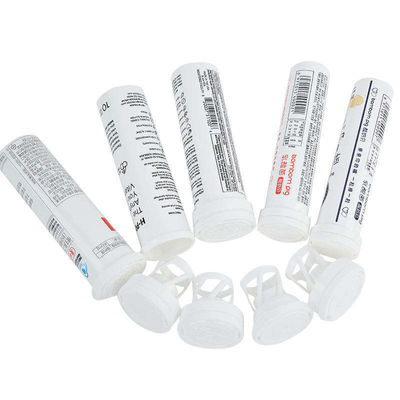

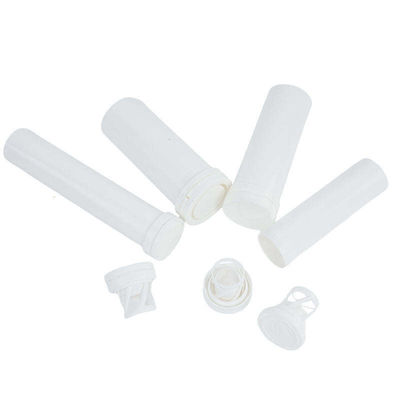

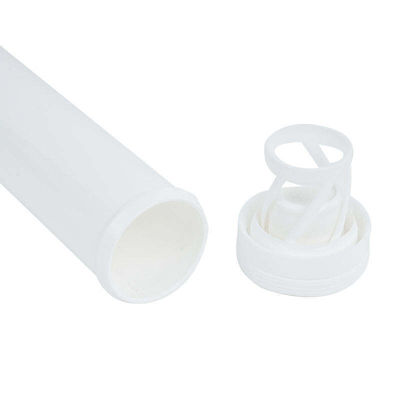

The cap of effervescent tube is cleverly designed, which is composed of desiccant, spiral spring and anti-theft ring. It plays different roles in protecting the safety and effectiveness of tablets.


1. Product Size

JND Code Tube Height(mm) Neck Outside(mm) Neck Inside(mm) Cap Diameter(mm) Desiccant Weight(g)
VCB29T99 99 29 27 34 2.1





2. Technical Specification





Type No. Item Specifications Inspection method AQL Type

Molding



1



 Appearance
  • Smooth surface, no obvious impurities, color particles and black spots
  • Under normal distance 30cm, normal light, no black spots, impurities
  • Uniform color, no mottled
 Visual Light
  2 Peculiar smell No peculiar smell different from the material itself. Complete structure injection mold in accordance with the standard sample Smell Main
  3 ￠29*99 Diameter 29.0±1.0mm caliper Main
      Height 99.0±1.0mm Height gauge Main
      Wall Thickness 1.0±0.4mm Caliper Main
Function 1 Sealing Property Filling nominal capacity of water into the tube and tighten the cap, then Horizontally placed in the ground without leakage after 4 hours. Visual Main
  2 Drop Property Filling nominal capacity of 20±5℃water into the tube and tighten the cap, then drop at 1.0m height, the bottom hits the cement flat ground, continuously dropping 3 times without rupture. Visual Main
  3 Thermo stability Filling 90 degrees of hot water into tube, and cover the cap, then move to the 60 degrees thermostat. After 30 minutes, observe that the product should not be deformed or ruptured Visual Main
Print 1 Drawing Color, Picture and Words same as standard sample According to standard sample Key
  2 Appearance The appearance of the printed product is clean no soiling and deformity refer to standard sample Visual Light
  3 Peel strength Use 3M600tape, smooth pull up the tape at an angle of 45 degrees no large area peeled off. Tape test Main






3. Storage:





  • Keep in a cool, dry and ventilated place. Not in sunlight, rain, near the heat source, exposed to high temperature, high humidity environment (normal temperature storage, humidity > 65%)
  • Need to pad higher, away from the ground and wall 10cm above. no pressure
